70-6509

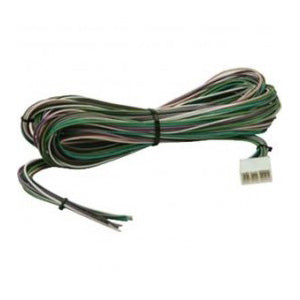

• 204" Long amplifier harness
• For 1997-1998 Jeep Grand Cherokee

Wire Colors for Bypass Harness:
 Green / White
 White / Red
 Left Rear Roof Speaker (+)
 Left Rear Roof Speaker (-)
 Brown / Yellow Right Rear Roof Speaker (+)
 Brown / Blue
 Right Rear Roof Speaker (-)
 The rest of the speaker wires are standard
 Metra / EIA color code that can be found on
 the back of this package.
 NOTE:
 The front tweeters are crossed over at the
 tweeters and are paralleled with the front door
 speakers.
 REV. 111003
 FACTORY AMP LOCATIONS:
 Under the rear passenger seat on the
 drivers side
